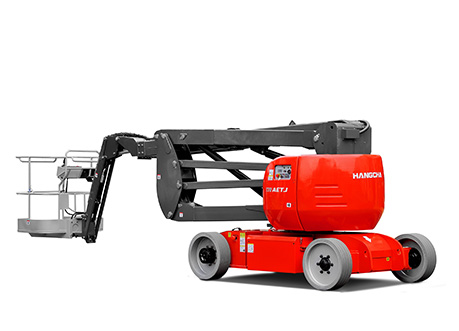

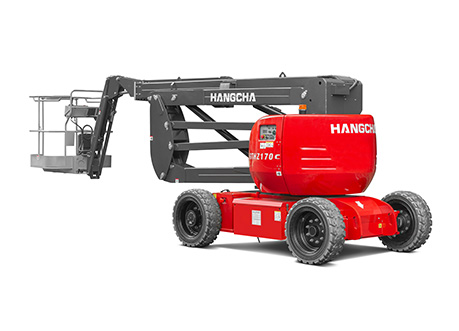

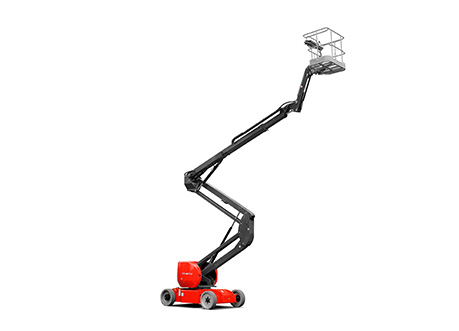

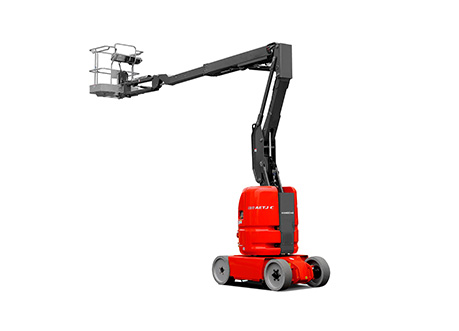

Brazos Articulados
GTHZ120 / GTHZ170 / GTHZ170C

This machine has articulation boom which can work across the obstacle. It can carry two people and some tools in the basket.
The machine allows you to operate it in limited place with narrow design and small radius turning system. You can operate the
machine from basket or base control, so when you want to move it, you do not need to go down the machine. Multi-motion control allows you to operate several actions simultaneously. With this machine, you can do work more efficient and comfortable.

FEATURES
  1. Increase the ground clearance to improve passability;
  2. This platform is provided with rough terrain tires, which are more suitable for working outside;
  3. The driving speed is 6.1km/h.
  4. Climbing performance is increased to 30%;
  5. Integrated design of motor and reducer. The motor controls the reducer to brake, reducing the impact of braking and improving
    the user’s comfort.
  6. Potentiometer is installed on the equipment, so that the left and right wheels have different speed when steering, so the steering
    is more stable.
  7. The drive motor is AC motor.
01

Basket: can be rotated left and right at an Angle of 140°

02

Base control box: the control box can be used to control each action of the device, easy to understand

03

Tires: foam-filled tires with good off-road performance

04

Basket control box: each action of the device can be controlled through the control box to quickly reach the working area, and the control is simple and easy to understand

05

Standard tracking battery: Reduce 40% of the charge time, raise 50% of the life time

STANDARD FEATURES
  • Electrical battery traction
  • Negative brakes
  • Lifting brakests
  • Hour meter
  • Warning buzzer in the basket
  • 220V predisposal
  • Voltage indicator
  • Safety manual pump
  • Bus CAN technology
  • Diagnostic help integrated
  • Dual electrical motors
  • No marking tires
  • Anti-roll system
  • Integrated charger
OPTIONS
  • Working lights
  • Flashing light(all motion alarm)
  • Buzzer
  • Air predisposal
  • Electrical plug 220V
  • Over-load sensor system

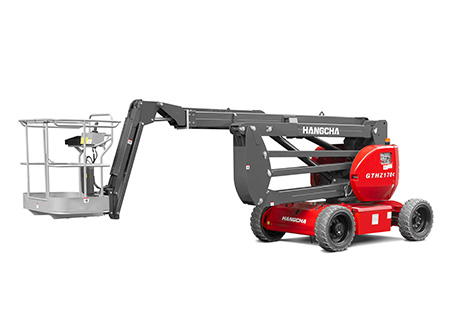

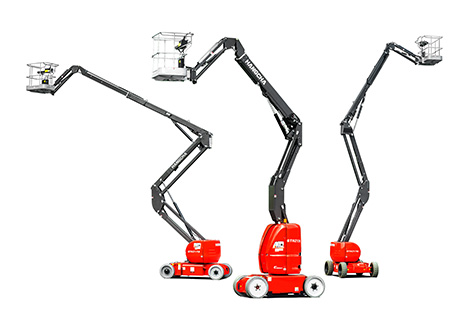

OTHER IMAGES
