XH 26-36k Slider

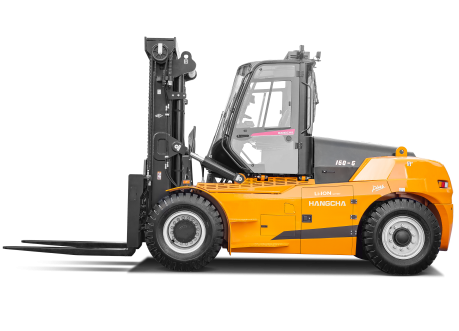

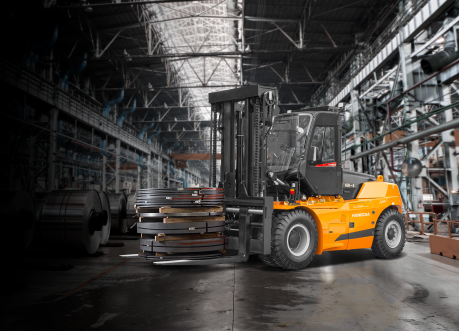

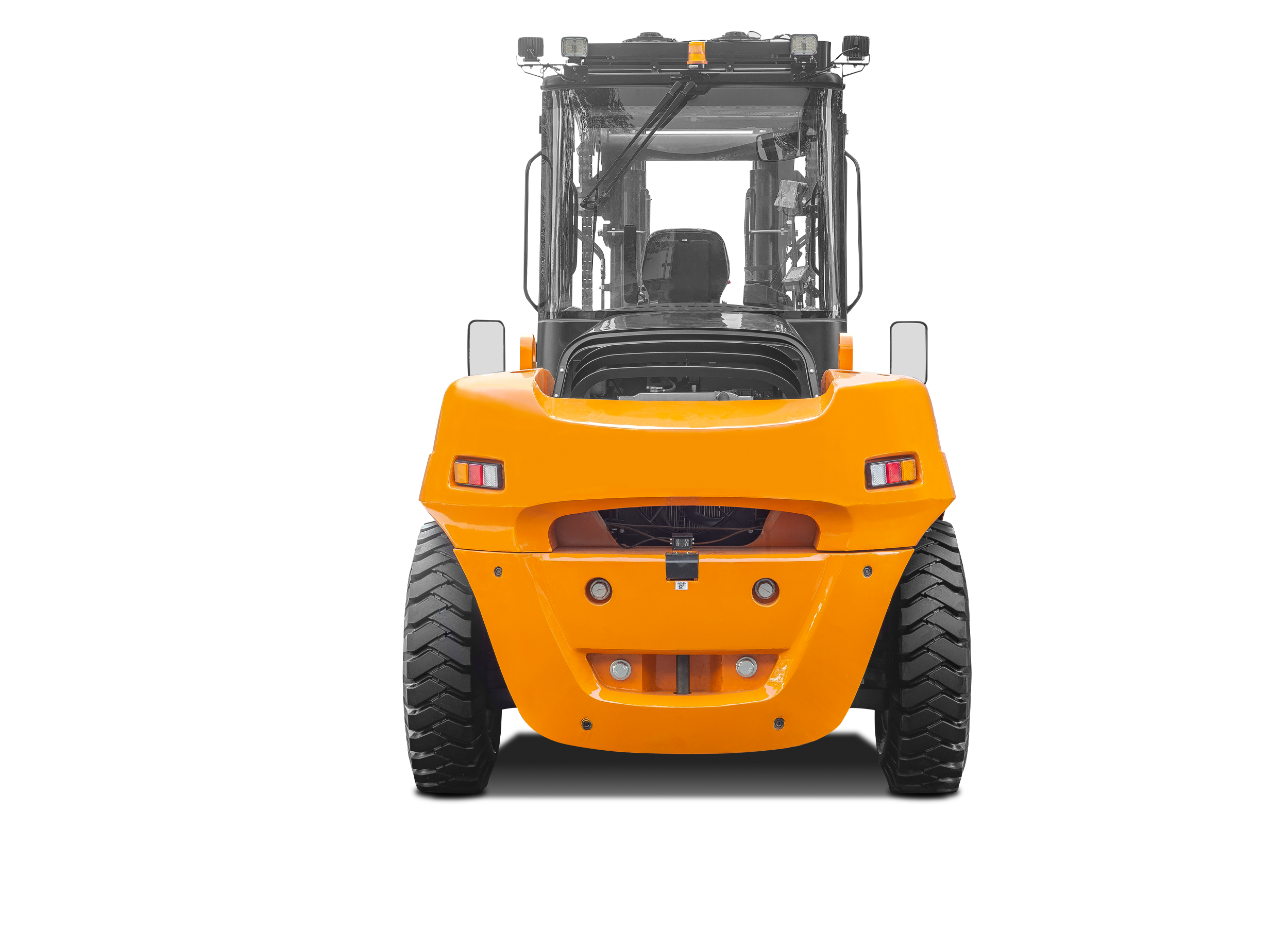

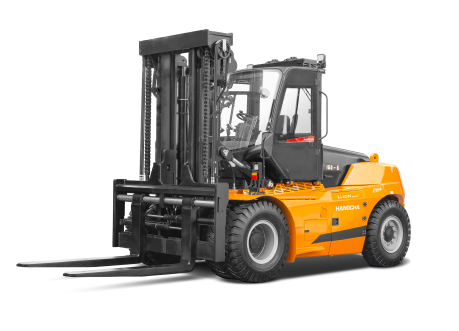

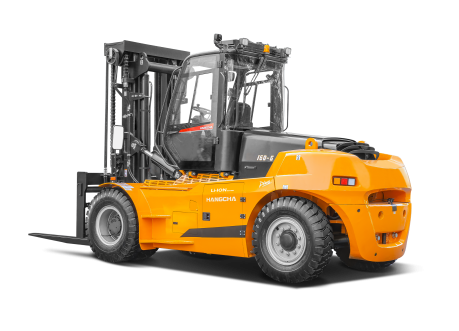

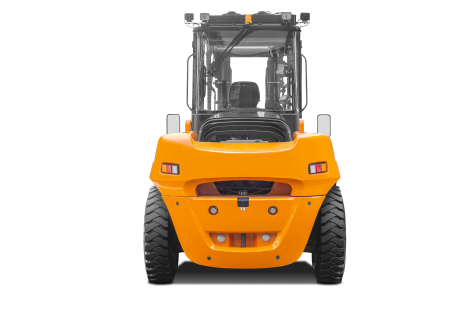

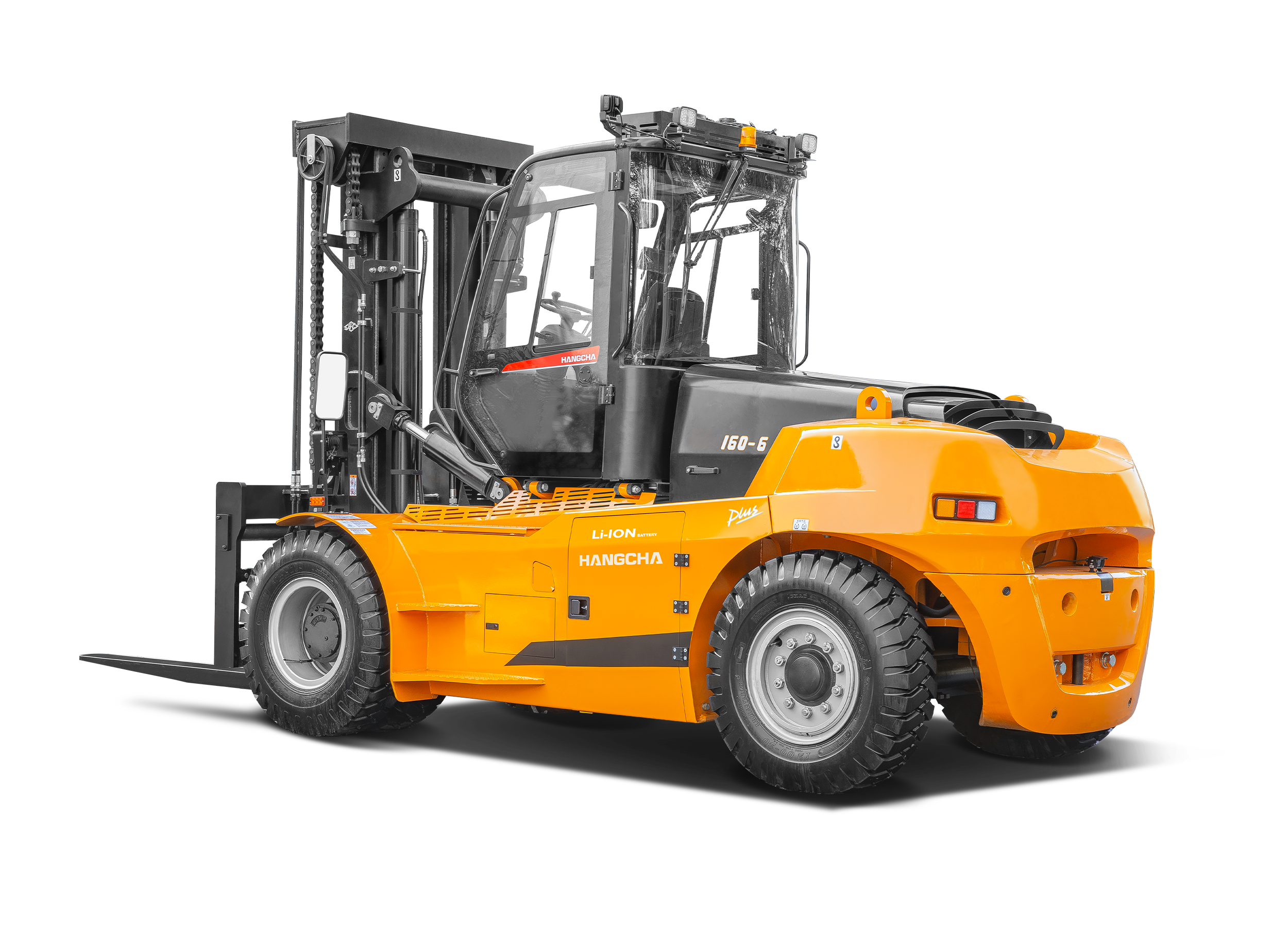

XH Series High Voltage Lithium-ion Pneumatic Forklift
26,000-36,000lbs lifting capacity

XH Series High Voltage Lithium-ion Pneumatic Forklifts are new series of high voltage lithium-ion forklifts independently developed by Hangcha Group. By applying the same technology found in automobile applications, Hangcha’s high voltage forklifts are designed to outperform similar electric and internal combustion forklifts. Hangcha Group is redefining electric forklifts’ efficiency, power, and reliability with the XH Series High Voltage Lithium-ion Forklifts.

XH Series High Voltage 36,000lb Benefits
FEATURES
  1. The XH Series uses vehicle-grade permanent magnet synchronization systems for the drive and operating systems. By using this technology, the high voltage forklift’s driving speed, ability on grades, and acceleration performance rival that of similar internal combustion vehicles. They also offer better environmental performance than similar I.C. forklifts.
  2. The forklift’s 541V (or optional 608V) high voltage platform is equipped with a heavy truck water-cooled box for better heat dissipation, longer endurance mileage and to increase the battery’s durability.
  3. The electronic controller and motor are water-cooled. This provides better heat dissipation and allows long-term and high-intensity work exactly like an I.C. powered forklift.
  4. The forklift uses the central controller to redeploy the traction integrated controller (PDU+DC/DC+MCU) and two-in-one oil pump controller. This intelligent driving system adds to the operational efficiency of the XH Series High Voltage Lithium-ion Pneumatic Forklift.
  1. The forklift’s central controller uses CAN-BUS architecture to monitor the built-in diagnostic sensors, management of the forklift’s functions, and the forklift’s central fault alarm.
  2. An optional intelligent management system can be installed to enable intelligent remote monitoring and easier equipment management.
  1. The operator compartment features an adjustable suspension seat, adjustable steering column, and an adjustable multi-directional armrest to allow the operator to find their ideal driving position.
  2. The forklift’s wide-view mast has an optimized design to provide the operator with a better line of sight. The carriage also features an enlarged opening to allow the operator to better see their load.
  3. The multifunctional LCD instrument panel is designed to clearly display data, functions, and monitor the forklift’s systems.
  4. The fully-suspended cab is waterproof and dustproof. It also is sealed to reduce noise in the operator compartment. Combined with the air conditioner and heater, the cabin is able to keep the operator comfortable in all outdoor working conditions.
  5. The cabin features a panoramic view that allows the operator to better see their surroundings.
  6. The hydraulic brake curve is optimized to achieve smooth and easy-to-control braking. Combined with the ergonomic joystick, operators are able to comfortably and accurately operate the XH Series High Voltage Lithium-ion Forklift.
  1. The forklift’s cover is sealed to IPX4 water resistance standards. The motors, electronic controls, and high voltage components are resistant to IP67 dust and water resistance standards. By building the XH Series forklifts to these standards, the forklift is able to safely and reliably operate in harsh operating environments.
  2. The electrical system is equipped with high voltage interlock and insulation detection to increase the forklift’s safety.
  3. The MSD maintenance switch enables one-click power-down to increase maintenance safety.
  4. Using some of the same key structural parts found in our I.C. Pneumatic Forklifts ensures the components’ safety and reliability as they have been used in the market for many years.

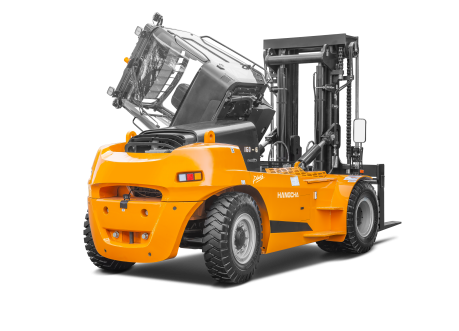

  1. The forklift uses an electric tilting cylinder to tilt the full cabin. By using an electric cylinder, operators are able to save time and effort when tilting the cabin.
  2. After tilting the full cabin, mechanics are able to easily maintain and/or repair the forklift thanks to the wide opening.
  1. Lithium-ion technology (Lithium Iron-Phosphate), was developed jointly by HANGCHA and CATL for use in material handling equipment applications. These innovative and reliable battery cells and modules are manufactured to the highest standard by CATL exclusively for HANGCHA’s forklift line.
  2. Rapid and opportunity charging ensures continuous availability of the material handling equipment.
  3. Lightweight design, highly efficient, maintenance-free, and long service life are all benefits of the XH Series.
  4. The newly designed chassis has a low center of gravity allowing the operator to feel stable while turning the forklift thanks to being designed around the lithium-ion technology.
  5. The Integrated Battery Management System (BMS) continually monitors energy management and ensures reliable operation. HANGCHA provides the Lithium Iron Phosphate battery packs with up to a 10 year or 20,000 hour warranty.

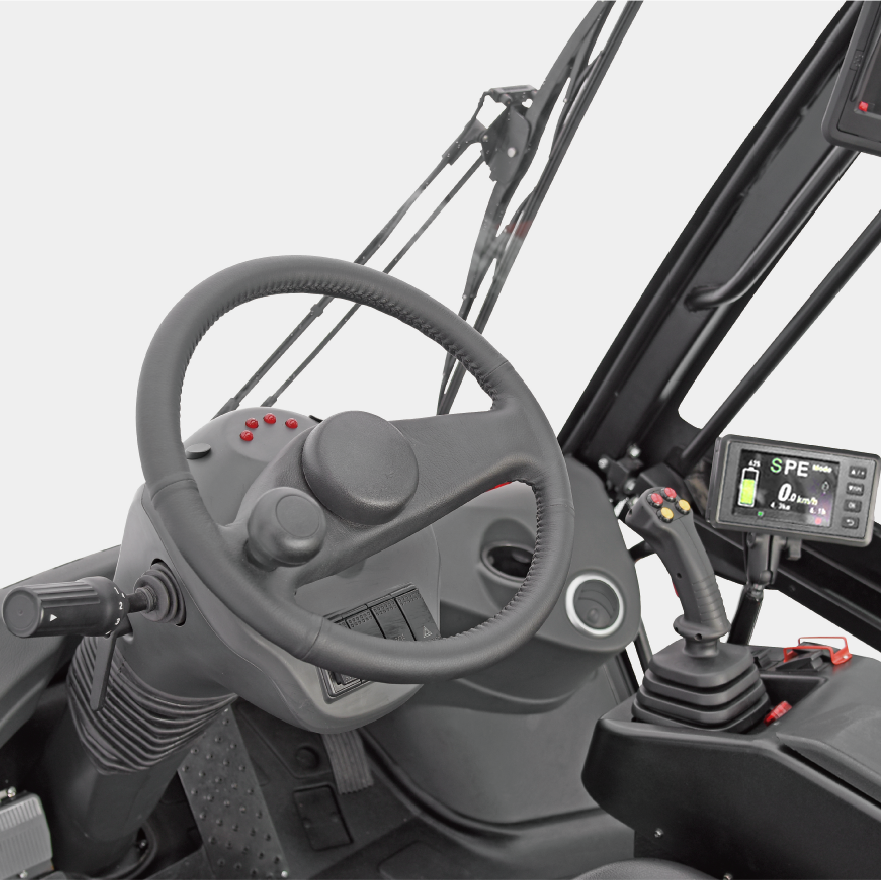

FB160Li Operator Compartment

Comfortable Operating Compartment

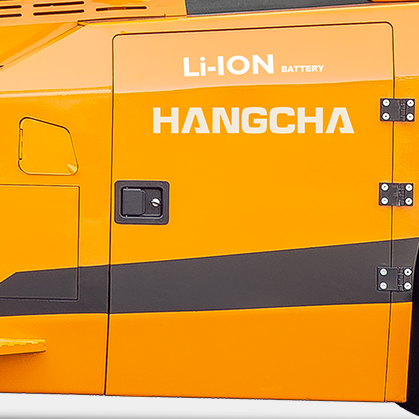

FB160Li Quick Charge

Rapid Charges in 1.5 Hours

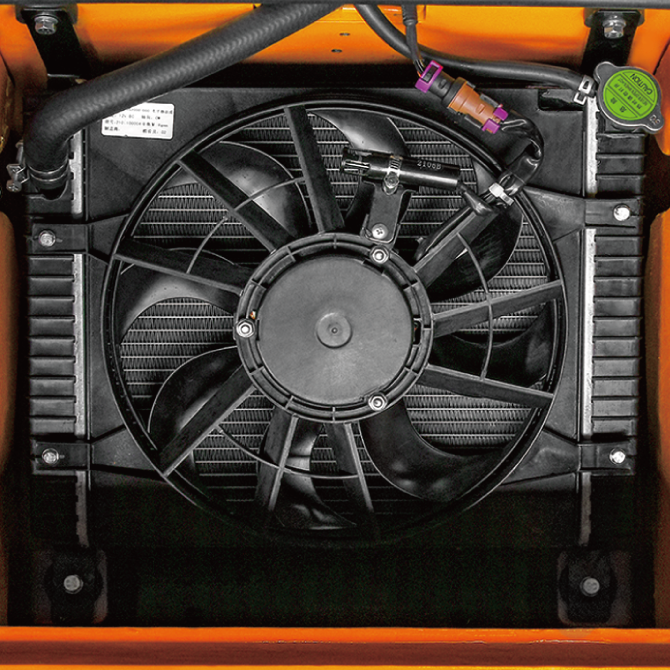

FB160Li Radiator

Water-Cooled Battery, Electric Motors, & Controllers

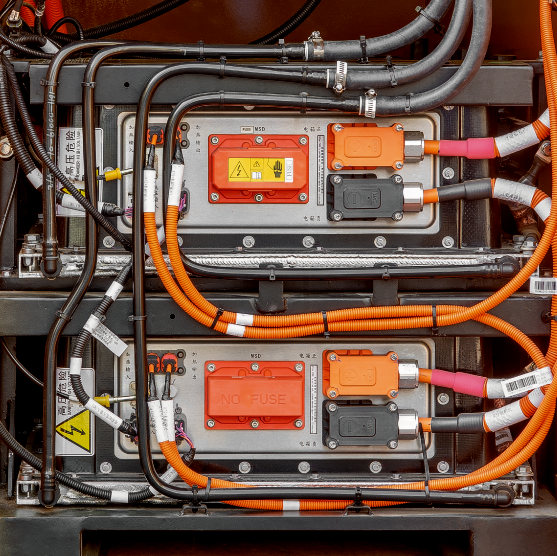

FB160Li Battery Packs

High Voltage Lithium Iron Phosphate(LiFePO4) Battery Pack

STANDARD FEATURES
  • High Power AC Drive Motors
  • Solid Pneumatic Tires
  • High Power AC Hydraulic Pump Motor
  • Silent Gear Pump
  • Multi-Function Color LCD Instrument Display
  • Large Integral Rubber Pedal Pad
  • Stamped Iron Hood & Side Plates
  • Stamped Stainless Steel Non-Slip Step
  • The Gas Hood Strut with a Touch-Proof Mechanism
  • Tilting Hydraulic System Self-Locking Valve
  • Lifting Hydraulic System Speed Limit Valve
  • Tow Pin
  • Main Power Switch
  • Reverse Camera
  • LCD Instrument Display
  • Neutral Indicator
  • Low-Pressure Alarm for the Accumulator
  • Hydraulic Oil Filter Alarm
  • Highly Efficient LED Lights
  • Air Pneumatic Tires
  • Reverse Alarm
  • Horn
  • Manual/Electric Tipping Pump
  • Toolkit
  • Multi-Function LCD Instrument Display
  • 541V/228Ah Lithium Iron Phosphate (LiFePO₄) Battery Pack
  • Water Cooling System for Battery Pack, Control System, and Motor
  • Integrated Controller (PDU+DC/DC+MCU)
  • Two-in-One Hydraulic Pump Controller
  • VCU Controller
  • MSD Maintenance Switch
  • Emergency Cut-Off Switch
  • Automatic Fire Suppression System for Battery Pack
  • Operator Fan
OPTIONS
  • Customizable Color
  • Various Fork Carriage Sizes
  • Various Mast Specifications
  • Solid Pneumatic Tires
  • Vehicle Intercom System
  • Reverse Alarm
  • Strobe Light (with/without a control switch)
  • Front and/or Rearview Camera (with optional memory)
  • Fire Extinguisher (4.4lb/8.7lb)
  • Mast Installed LED Working Light
  • Remote Monitoring System
  • Speed Limiter
  • Blue Light
  • Scale System
