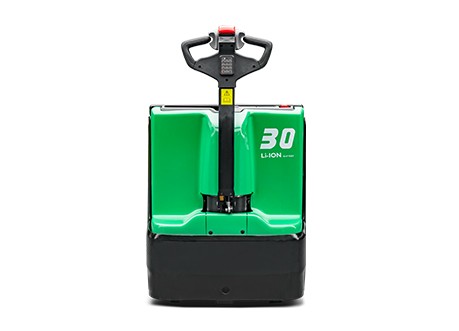

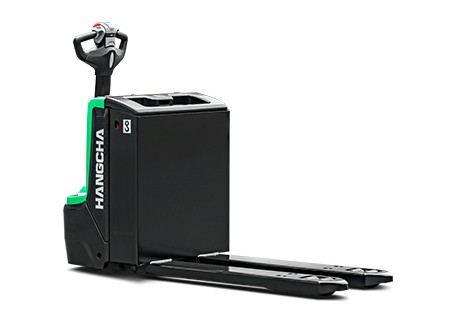

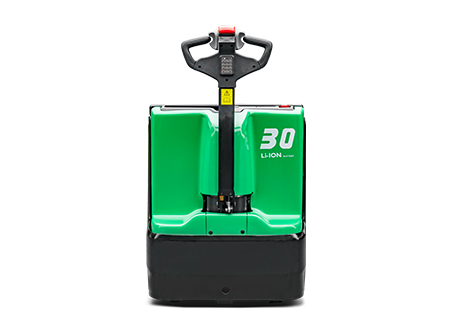

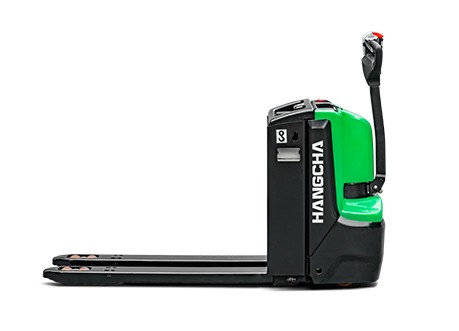

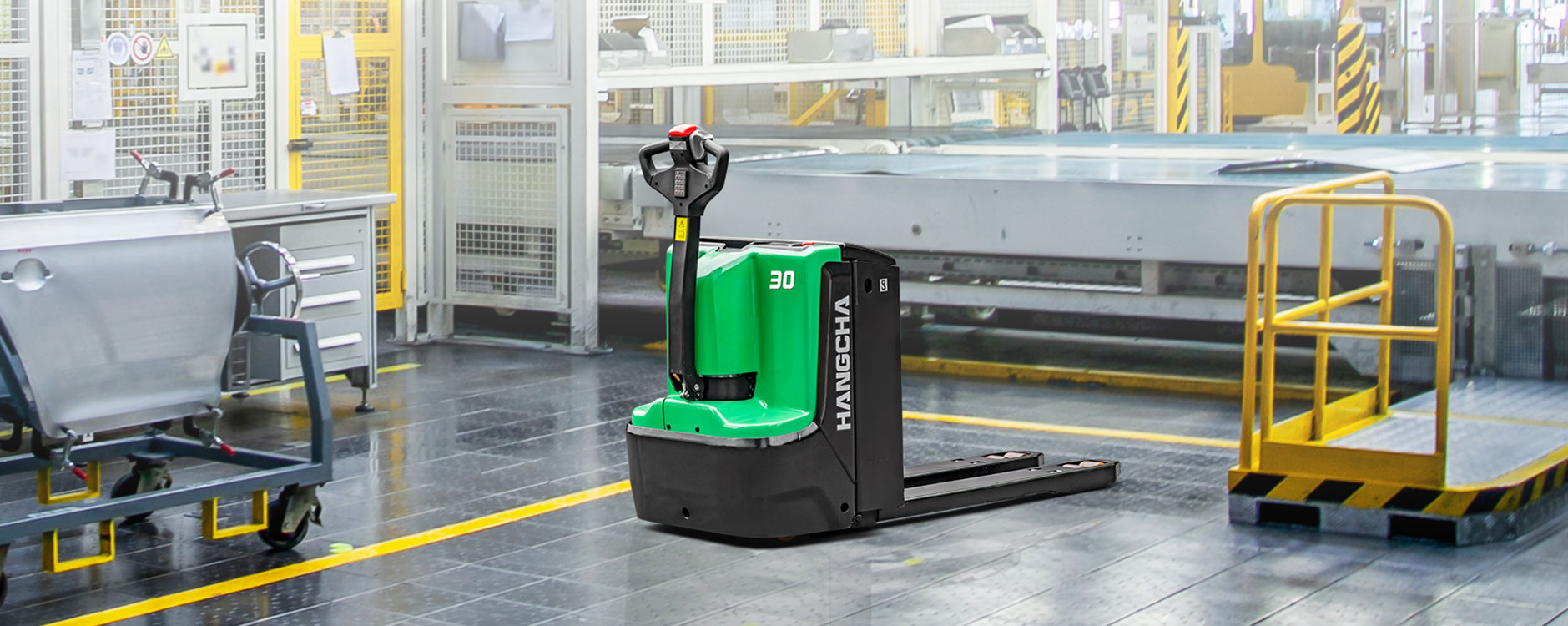

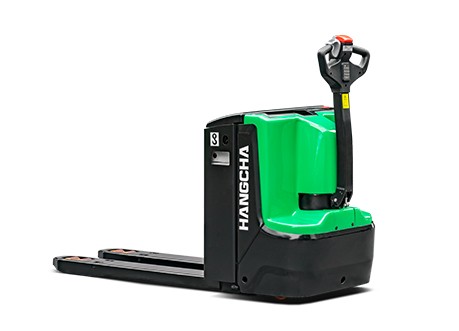

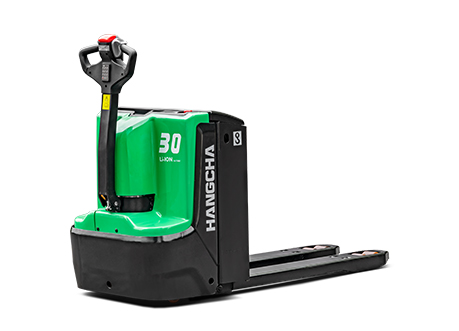

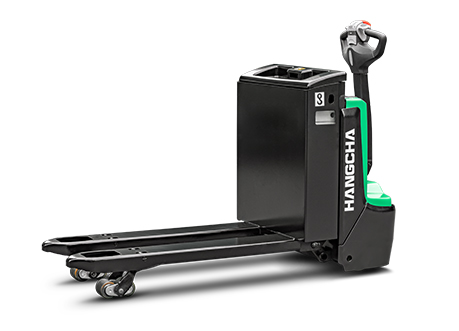

X series Hi-range electric pallet truck are a new generation of products newly developed by Hangcha for warehousing and logistics applications. Using the advanced permanent magnet brushless drive technology and equipped with a new 48V system, the products have advanced performance, comfortable, safe and reliable operations and low use and maintenance costs, and are ideal tools for loading, unloading and handling palletized goods in warehouses, supermarkets and workshops.
/ With high power drive motor, provides fast travel speed and good gradeability.
/ The permanent magnet synchronous drive system has excellent performance and low energy consumption.The 48V power supply system has less heat generated.
/ With the VCU control, the vehicle can be controlled accurately, stably and more efficiently.
/ The X series Hi range electric pallet truck adopts a professional industrial design of exterior and a series family design. The vehicle has a smooth vivid profile and a fully ergonomic design, following the latest exterior design trend.
/ Made of high-strength steel plates that are molded by stamping, the vehicle exterior is robust, durable and high-grade, and meets environmental protection requirements.
/ With the low center of gravity design and a high-strength steel frame structure, the vehicle frame has a large residual load capacity.
/ The hydraulic power unit applied to provide low noise, low vibration, smooth lifting and landing reliable operation.
/ All shafts installed lubricated shaft sleeve and oil cup, provide convenientmaintenance and long service life.
/ Rear cover can be completely open, operator can see all the components,so the maintenance is very convenient.
PIN code access
Water-proof plugs and connectors applied to provide a reliable protection to electric system.
The integral metal rear hood can withstand external impact.
The emergency button on the tiller head can effectively avoid the harm to the driver.
- Different length of forks
- Different width of outside fork
- Single load wheel
- 48V/105Ah lithium battery (EVE)
- 48V/125Ah lithium battery (CATL)
- Key switch
- 48V30A charger
- 48V50A charger
- Lithium battery(48V/80Ah,EVE) with the on-board charger(48V,20A)
- Lithium battery(48V/105Ah,EVE) with the on-board charger(48V,20A)
