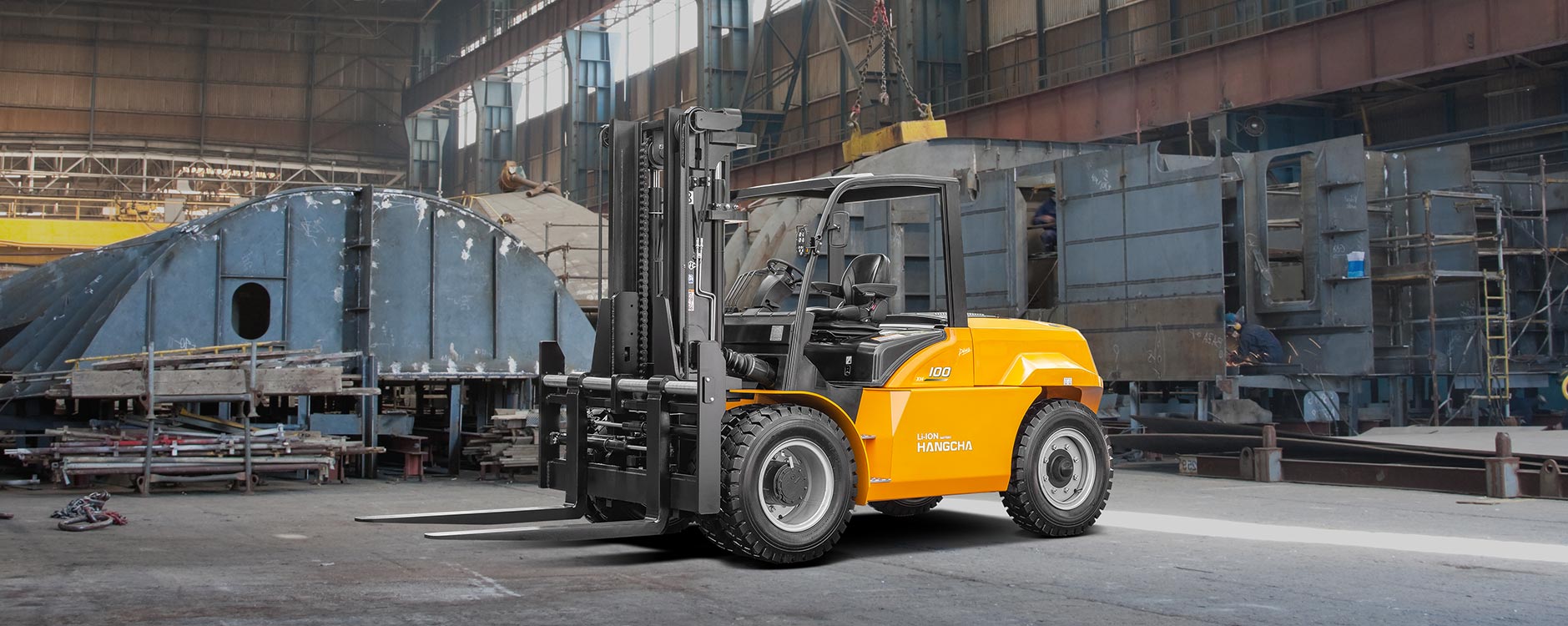

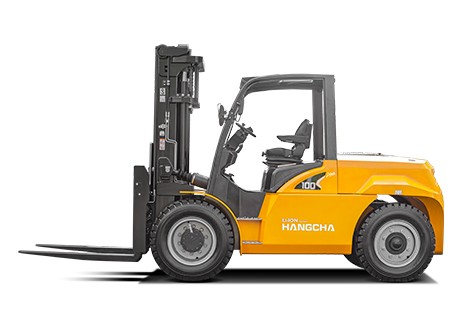

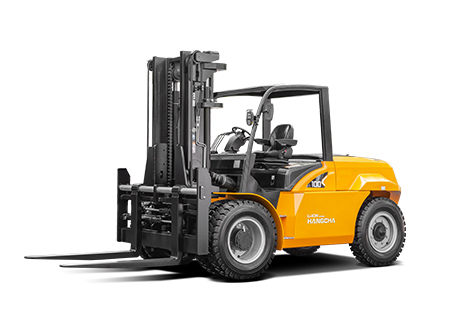

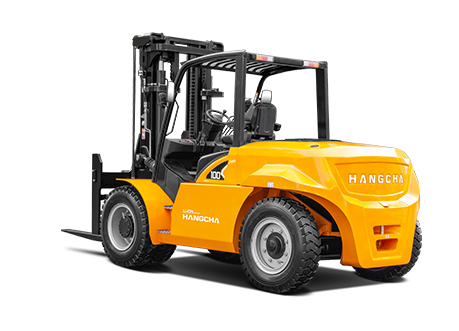

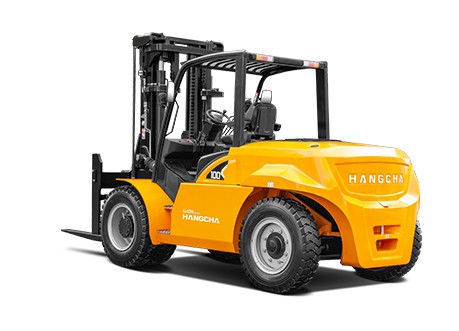

XH Series High Voltage Lithium-ion Pneumatic Forklifts are new series of high voltage lithium-ion forklifts independently developed by Hangcha Group. By applying the same technology found in automobile applications, Hangcha’s high voltage forklifts are designed to outperform similar electric and internal combustion forklifts. Hangcha Group is redefining electric forklifts’ efficiency, power, and reliability with the XH Series High Voltage Lithium-ion Forklifts.
With the inherited classic exterior design of the dedicated XC lithium battery forklift and a smooth and sturdy profile, the whole vehicle is impact, elegant, stylish and sturdy.
/ Standard large-capacity lithium battery meets long battery life requirements.
/ Both the drive and operating systems are vehicle-grade permanent magnet synchronization systems, being energy-saving and efficient;
/ With 309V high-voltage platform, the vehicle boasts of a smaller current and very low heat loss;
/ The vehicle uses an overall controller to control the traction motor controller assembly and the driving motor controller assembly to form a highly independent, light-weighted, efficient and intelligent drive system.
/ The standard battery with superfast charging technology needs only 1.0h(6.0-7.0t)/1.5h(8.0-10t) to charge fully;
/ Optional slow-charge charger (2h(6.0-7.0t)/3h(8.0-10t) to charge fully), cost-effective and economical.
/ Both the drive and operating systems are vehicle-grade permanent magnet synchronization systems. Equipped with a high speed ratio gearbox, the driving speed, upslope degree and acceleration performance surpass that of internal combustion vehicles.
/ It adopts the same structural design of drive axle, steering axle and tires as internal combustion forklifts, which can meet the demand of high-intensity operating conditions.
/ With regard to the series of products, a water cooling system with a good heat dissipation effect is used on a new energy forklift for the first time, so that the forklift can carry out long-time and high-intensity operations as internal combustion forklifts.
/ It meets all-weather operating conditions and is usable under severe operating conditions such as cold storage, heavy rain and waterlogged roads.
/ Equipped with a lock, charging, liquid replenishment and maintenance become convenient.
/ The water tank lid can be removed quickly and easily without a tool to enable a large operating area for cleaning and maintenance.
Standard large-capacity lithium battery
Charging port
The electrical system is equipped with highvoltage interlocks, insulation detection and vehicle-grade safety means. The MSD maintenance switch enables one-click power-down and safer maintenance.
An optional OPS seat sensing feature is provided to enable high safety by disabling the descending, lifting and driving when the driver leaves the seat and giving out an alarm when the driver leaves the seat without activating the hand brake.
- Multi-function color-screen combination instrument
- Large integral rubber pedal pads
- LED combination headlights, LED rear combination three-color taillights
- Duplex wide-view mast
- Stamped iron hood, stamped iron side plates
- Stamped stainless steel boarding step
- The gas spring of the hood with a touch-proof mechanism
- Handbrake with a touch-proof mechanism
- Integrated fuse box
- Charging muzzle meeting national standards
- Reverse buzzer
- Lithium battery pack
- Lithium battery pack with low temperature electric heating systems
- Maintenance-free 12V lead-acid battery
- Two-in-one permanent magnet AC traction motor controller
- Two-in-one permanent magnet AC oil pump motor controller
- Two-in-one DC-DC power supply
- VCU controller
- MSD maintenance switch
- Emergency power off switch
- Mileage display, operating time display
- Load sensing steering system
- Turning deceleration function
- Fork descending buffering
- SPE power selection
- Electronic water pump
- Electronic fan
- Heat dissipater
- Expansion tank
- 2nd valve (6.0-7.0t)
- 4th valve (8.0-10t)
- Quadruple multi-way valve
- Silent gear pump
- Traction pin
- Left and right rear view mirrors
- Hangcha cloud intelligent management system
- Solid tire
- Reversing video
- Front/rear blue lights
- Rear operation lights
- Dedicated lithium battery charger
- Reverse armrest (with a horn button)
- OPS seat sensing function
- 3th/4th valve (6.0-7.0t)
- 5th valve
- Quintuple multi-way valve
- Widened fork carriage
- Forks of other lengths
- Free duplex mast
- Free triplex mast
- Accessories for other specifications
- Start with a PIN code or by swiping a card
- Coloring solid environmentally friendly seamless tire
- Toolbox, folder
- Integrated fingertip control system including ergonomic armrests
